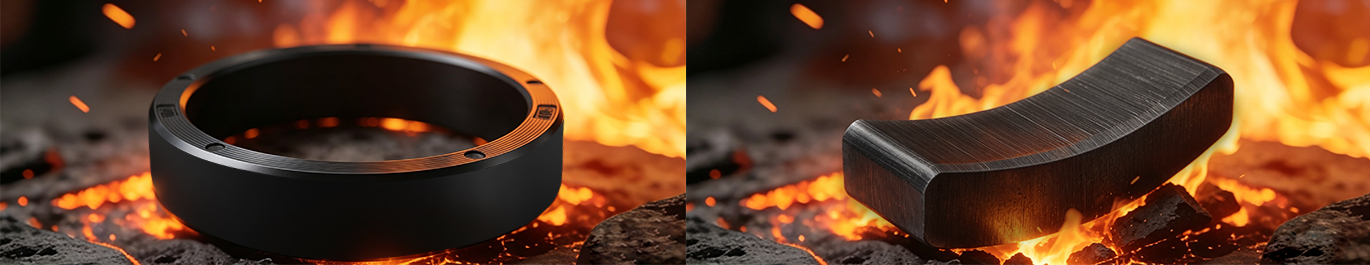

Bonded vs Sintered Ferrite for DC Motor Over 100 degrees

Making the switch from sintered ferrite tiles to bonded ferrite rings sounds appealing — fewer assembly steps, precision size, and consistent field orientation. But if your small DC motor runs above 100°C, it is important to consider: is it suitable or not?

From our experience in magnet exporting, the lifespan gap really depends on the actual operating temperature and how long it stays there. Bonded ferrite generally uses a polymer or rubber matrix, which can start to degrade gradually once temperatures consistently exceed 100°C. That doesn’t mean it fails overnight — but you could see a moderate reduction in magnetic performance over months or years. Sintered ferrite, being fully ceramic, handles heat more steadily.

Realistically, if your motor sees brief peaks above 100°C, the bonded ring may still last several years with only mild flux loss. For continuous 120°C operation, though, the bonded option might lose, say, 20–30% of its output within one to two years, while a sintered tile would likely hold up much longer. The exact numbers vary with the bonder’s formulation and motor design.

So if simplified assembly is a priority and your temperature stays near or only occasionally nudges above 100°C, bonded ferrite rings can be a practical choice. Just leave some margin for aging. For sustained high-heat environments, sintered tiles remain the safer bet. Either way, testing your specific conditions gives the clearest answer.
