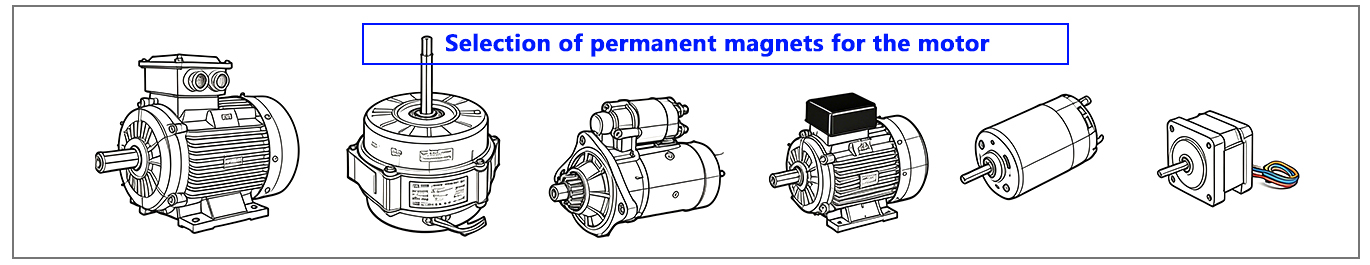

Choosing the Right Magnet for Your Motor: Lessons from the Shop Floor

One of the most frequent errors involves chasing the highest magnetic grade available. It‘s easy to assume that a stronger magnet means a better motor, but higher-grade neodymium magnets often come with reduced thermal stability. A magnet that performs beautifully at room temperature may begin to lose strength irreversibly once the motor heats up under load.

Temperature, in fact, is a factor that tends to get underestimated. Motors generate heat internally, and the peak temperature inside the rotor can be significantly higher than the ambient or case temperature. Different magnet materials have different temperature coefficients and maximum operating limits—neodymium, samarium-cobalt, and ferrite each behave differently as the mercury rises.

Another common oversight relates to the operating environment. Neodymium magnets, for instance, are susceptible to corrosion in humid or chemically aggressive settings. Without proper coating or encapsulation, moisture can penetrate and cause oxidation, leading to mechanical damage over time. What works in a clean, dry lab may not survive a factory floor or outdoor installation.

Then there‘s the question of the magnetic circuit itself. Many designers evaluate a magnet based on its datasheet pull force, but that number is typically measured under ideal conditions—a perfectly flat steel surface with no air gap. In real motors, air gaps from tolerances, coatings, or assembly variations can reduce effective force by a considerable margin. The magnet doesn‘t exist in isolation; it‘s part of a system.

Finally, shape and magnetization direction don‘t always get the attention they deserve. A poorly chosen geometry or incorrect magnetization can lead to flux leakage, uneven forces, or unwanted interactions with surrounding components. Even the right material, if placed incorrectly or magnetized in the wrong direction, may fail to deliver the expected performance.

The takeaway? Magnet selection is a balancing act. It involves weighing magnetic strength against thermal stability, environmental resistance, mechanical integration, and cost. There‘s rarely a single "best" choice—only the right choice for a specific application and its operating conditions.
